Automatic PET& PP Bottle Blowing Machine

This full automatic PET, PVC, and PP disposable plastic Bottle Blowing machine is designed for efficient production of food-grade plastic Bottle . It supports multiple materials and delivers stable performance, precise forming, and high output with minimal labor.

  • Número de artículo :

    GYC-B2026
  • Pedido (MOQ) :

    1 SET
  • Pago :

    CONTACT
  • Origen del producto :

    CHINA
  • Color :

    CUSTOMERMIZED
  • Puerto de embarque :

    CHINA PORT
  • Plazo de entrega :

    35-40DAYS
  • Peso :

    10TON

 Automatic PET& PP&PVC Bottle Blowing Machine



1, Specifications of L-BS514(2-cavity):
1.1, Main machine dimension:2200(L)*1900(W)*1700(H)mm;
       Convyeor dimension: 1700(L)*1200(W)*1800(H)mm;
1.2, Theoretical output: 0.5L,2000-2500pcs/hour.
1.3, The main structure is made of #63 channel steel, welded by A3 folding, the surface (blue as basic color) is treated with plastic ejection. the whole structure is delicate and durable.
1.4, Solenoids adopt Taiwan Airtac brandPLC is from Taiwan Delta,
1.5, Conveyor system adopts #45 steel, the surface is galvanized.
1.6, Automatic preform-feeding for conveyor, it is easy to operate by only putting a certain quantities of preforms inside the feeding bucket. The movement of feeding,heating,blowing and finished bottle transferring is done automatically.

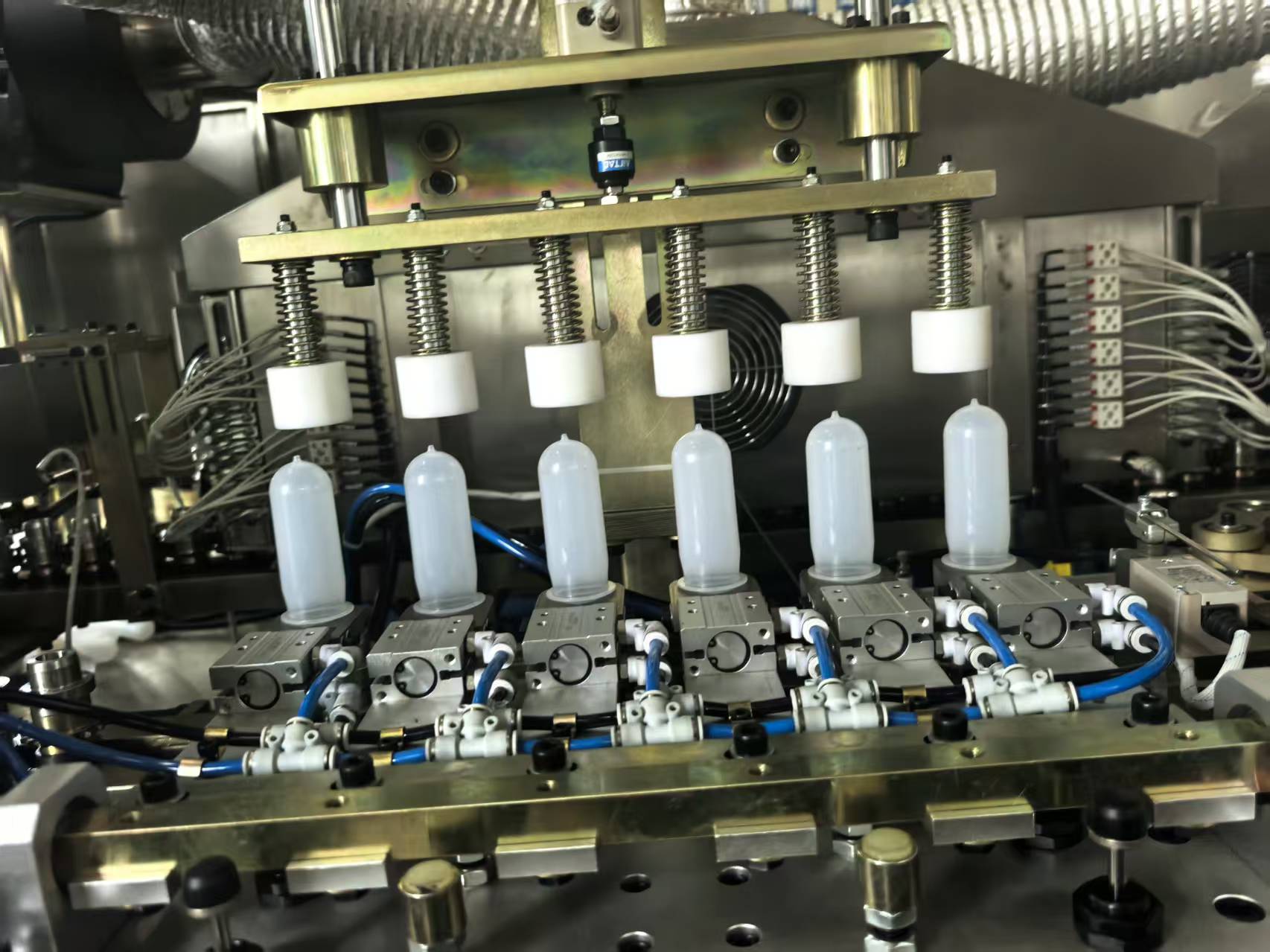

1.7, Preforms are transferred to the heater through rotating and passing-one-by-one to ensure being heated evenly.
1.8, PLC panel adopts Delta to make the machine stable and reliable.



Key attributes

TYPE

ITEM

UNIT

TECHINICAL DATA (L-BS514 12)



Product material



PET

最大容量Max volume of product

L

0.1-2L

最大口径Neck diameter

mm

18-48

产量

theoretical output

pcs/hr

1800-2000



max.mould plate dimension(W*H)

mm

280 *300

最大模板尺寸

 thickness of mould 模具厚度

mm

220

clamping force

KN

160

mould opening stroke开模行程

mm

125

 r

空压机压力air compressor

M3 /Mpa

1.65/3.0*1set

功率air pressure for blowing

KW

48



冷水机Water chiller

HP

5HP



功率power

KW

1.5/10

电压voltage/frequency

V/HZ

380/240/110/50-60                            (3-phase)



主机外形尺寸main machine(L*W*H)

M

2.5*1.95*2.2

上料机

M

1.9*1.2*2.6

重量main machine weight

T

2.8

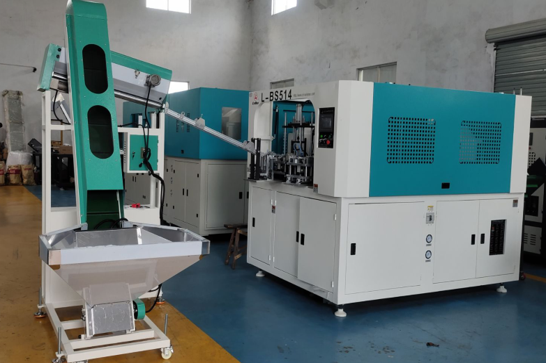

1, Specifications of L-BS514(4-cavity):
1.1, Main machine dimension:4200(L)*1900(W)*2200(H)mm;
1.2, Theoretical output:  4000bph(500ml)
1.3, The main structure is made of #63 channel steel, welded by A3 folding, the surface (blue as basic color) is treated with plastic ejection. the whole structure is delicate and durable.
1.4, Stretch cylinder and pneumatic components adopt SMC brandPLC is from Taiwan Delta.
1.5, Conveyor system adopts #45 steel, the surface is galvanized.
1.6, Automatic preform-feeding for conveyor, it is easy to operate by only putting a certain quantities of preforms inside the feeding bucket. The movement of feeding,heating,blowing and finished bottle transferring is done automatically.

1.7, Preforms are transferred to the heater through rotating and passing-one-by-one to ensure being heated evenly.
